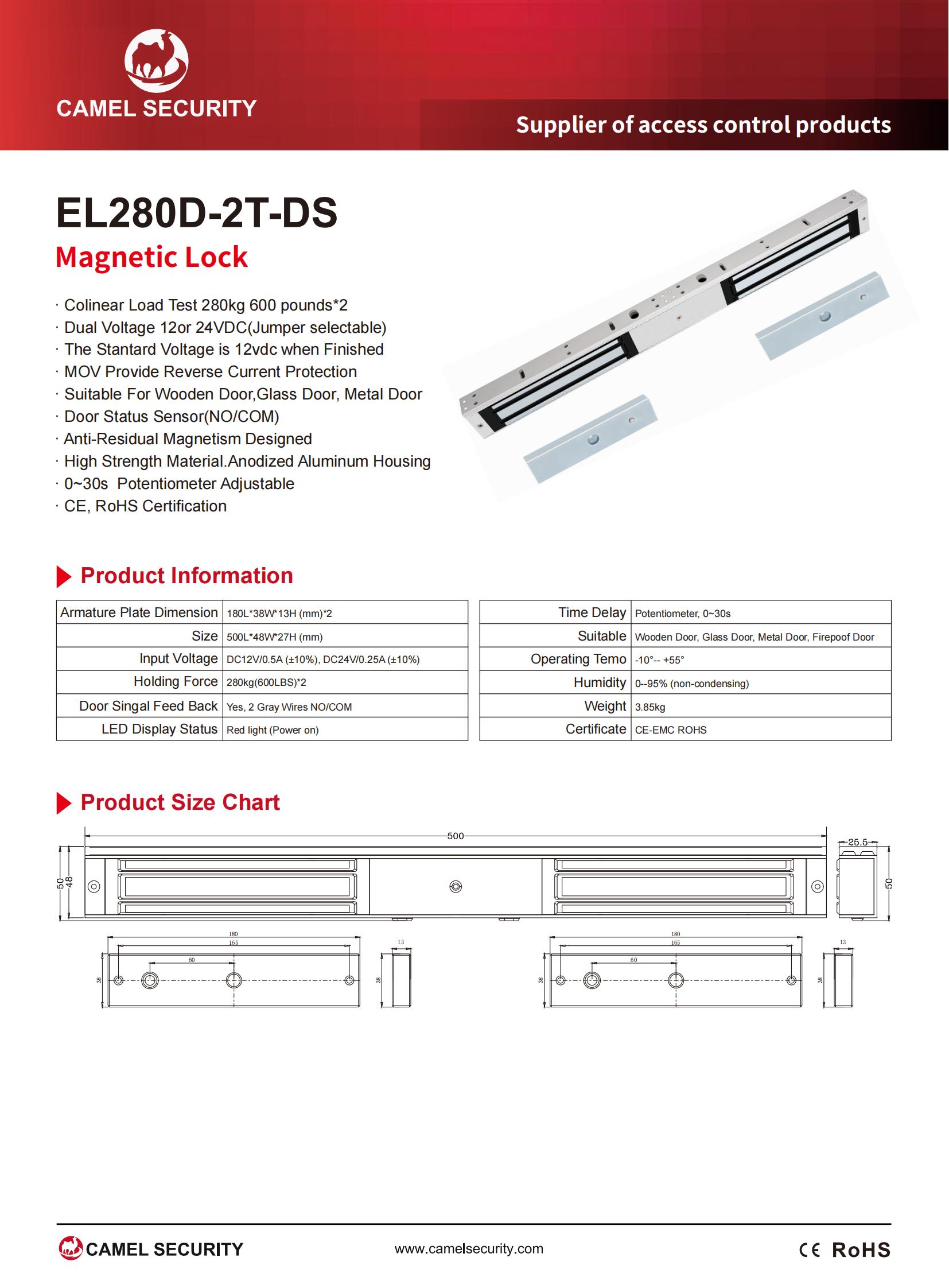

EL280D-2T-DS Magnetic Lock
Armature Plate Dimension：180L*38W*13H (mm)*2
Size：500L*48W*27H (mm)
Input Voltage：DC12V/0.5A (±10%), DC24V/0.25A (±10%)
Holding Force： 280kg (600LBS)*2
Door Singal Feed Back： Yes, 2 Gray Wires NO/COM
LED Display Status：Red light (Power on)
Time Delay： Potentiometer, 0~30s
Suitable： Wooden Door, Glass Door, Metal Door, Firepoof Door
Weight：3.85kg
Certificate： CE-EMC ROHS
- Parameters
Armature Plate Dimension：180L*38W*13H (mm)*2
Size：500L*48W*27H (mm)
Input Voltage：DC12V/0.5A (±10%), DC24V/0.25A (±10%)
Holding Force： 280kg (600LBS)*2
Door Singal Feed Back： Yes, 2 Gray Wires NO/COM
LED Display Status：Red light (Power on)
Time Delay： Potentiometer, 0~30s
Suitable： Wooden Door, Glass Door, Metal Door, Firepoof Door
Weight：3.85kg
Certificate： CE-EMC ROHS
